Introduction: The Importance of EDI
The benefits to businesses of B2B Integration in general and e-invoicing in particular have been widely
documented in multiple reports. An EC report1 quotes 238 billion Euros, 400,000 tons of paper, 2,700 tons of ink,
160 million litres of petrol as an estimate of what European businesses would save by adopting e-invoice. The
benefits are much larger if one includes other traditional B2B document flows such as purchase orders and
The 2 traditional B2B Integration methods
The 2 traditional methods of automating data exchanges between business partners (B2B Integration) are either
(1) to acquire B2B translation software or (2) to join a B2B integration environment. The first method is also the
most historically common method. Companies buy (or custom build) and install a B2B communication system
within a company’s internal IT environment and organize point-to-point communication with other companies via
private networks (X400 network or, so-called value-added networks).
This way of doing B2B Integration enables a great deal of flexibility. Participants control the individual B2B
relationships and their technical components. However, this method requires a significant investment in money,
time and skills. Larger companies have traditionally opted for this method.
Together with the Internet, a second method of carrying out B2B Integration emerged: the B2B integration
environment. Point-to-point communication is replaced by a central environment which means that one
communication to the central environment is sufficient to reach all other partners. The B2B integration environment
enables one to communicate rapidly with a community of trading partners. The value proposition of the B2B
integration environment is to create a single technical link between an individual company and the environment.
B2B data flows will then be technically organized by the environment. This method corresponds to outsourcing to a
third party. It leads to a loss of control and sometimes a loss of speed when the time comes to connect to a new
business partner. Medium-sized companies have usually chosen this method.
What’s different about Babelway?
Babelway B2B integration Software-as-a-Service has bridged the 2 traditional methods. Babelway enables
customers to connect directly to their partners, avoiding the need for B2B intermediaries. Customers therefore have
complete control over their data flows. In addition, Babelway does not require the acquisition of in-house software
and infrastructure. Customers can avoid the investment and the operational costs of running a B2B infrastructure
and benefit from automated data exchange at much lower costs. The community of Babelway users can share
common components of data flows (e.g. the invoice format of Carrefour Belgium) through a catalogue of
components which leads to a decrease in the time it takes to build new channels as the community increases.
Babelway offers absolute flexibility to companies of all sizes and at any level of data exchange volumes. They
can decide to control data flows or outsource some of it to external IT partners. They can quickly deploy to
business partners or stage an on-boarding project based on general business priorities.
This document describes the innovative EDI and e-invoice Software-as-a-Service (SaaS) developed by Babelway.
It is addressed to those carrying out an in-depth evaluation of a B2B Inegration solution. We also advise these
people to register online now to freely discover for themselves what Babelway can do and how it works.
Babelway B2B integration Software-as-a-Service allows organizations to automate cross-company processes and
enables the secure exchange of structured and recurrent documents such as orders invoices, payslips, reports,
payment advices, etc.
All it takes to be ready to automate data exchange with ANY business partner or computer application is to register
online (www.babelway.net) . Babelway guarantees foolproof security, unlimited scalability and first-class
performance. Babelway is the solution for rapidly connecting to a trading community while still retaining full control
over data flows.
Babelway offers a wide range of functionality to build and administer channels between 2 systems. Babelway
supports AS/2, FTP(s), sFTP, email, SOAP, Rest, PEPPOL, RosettaNet and others communication and supports
XML, Excel, EDI, CSV and any custom flat-file formats.
Babelway is equipped with multiple functionalities such as drag&drop mapping interfaces, message validation,
electronic signature, look-up tables, test environment, routing, email notifications, catalogue of ready-to-use
components, message tracking, issue management, access and privilege management, capacity and performance
management and storage and archiving management.
Babelway software and infrastructure is managed using the strictest quality and security management processes.
Babelway information security management system (ISMS) is built according ISO27001 standard to ensure total
security in highly technical environments. Babelway hosting is based on a multi-location strategy with at least 2
redundant data centers for each component of the infrastructure. All systems are permanently monitored by
internal and external systems. Storage is encrypted to guarantee confidentiality. Babelway conforms to legal
requirements in e-invoicing and provides customers with advanced certificates to enable them to transfer and
archive invoices in a legally compliant way. Since 2013 Deloitte provide a SOC 2 type2 report on the system
controls intended to meet the criteria for Security, Availability, Processing Integrity, Confidentiality, and Privacy. In
2008 the Babelway solution has been audited and qualified as compliant with the relevant EU regulation by
Professors Dumortier (KUL) and Quisquater (UCL), internationally recognized experts in the fields of electronic
signature and cryptography.
Babelway offers helpdesk support. Customers can call upon Babelway professional services to support them with
on-boarding partners, designing new channels, developing internal or external communication plans and generally
execute projects in relation to the exploitation of the Babelway platform. Babelway also develops partnerships with
software vendors and IT integrators to enable customers to find help from the most effective source whenever
Babelway regularly organises training sessions and plans to develop a certification program for qualified
Babelway Platform is first B2B integration Software-as-a-Service. It enables to quickly and cost-effectively automate B2B flows such as EDI messages and electronic invoices across all customers, suppliers, and partners. Leveraging the SaaS model, Babelway help to streamline the deployment, maintenance and monitoring of B2B exchanges giving greater confidence and control over business process. Because Babelway is a cloud-powered integration platform, it offers quick and cost-effective integration to SaaS and on premise applications. This means that client can achieve significantly improved data management, more efficient processes, lower enterprise costs, and better resource allocation.
Babelway services are fully available on-demand via a web-browser. There is no software or hardware to buy and maintain in-house, but yet Babelway is still under the full control of its users.
This chapter briefly describes the main functionalities of the software
A channel is the collection of components that must be assembled within Babelway in order to organize an automatic data flow from an external system A to another external system B. The key components are
(1) the way in which Babelway is interfaced with system A, called the “gateway IN”,
(2) the way in which system A formats data, called the “message IN”
(3) the format in which system B wants to receive data, called the “message OUT”
(4) the way in which Babelway is interfaced with system B, called the “gateway OUT”
In building channels, Babelway contains the following functionalities:

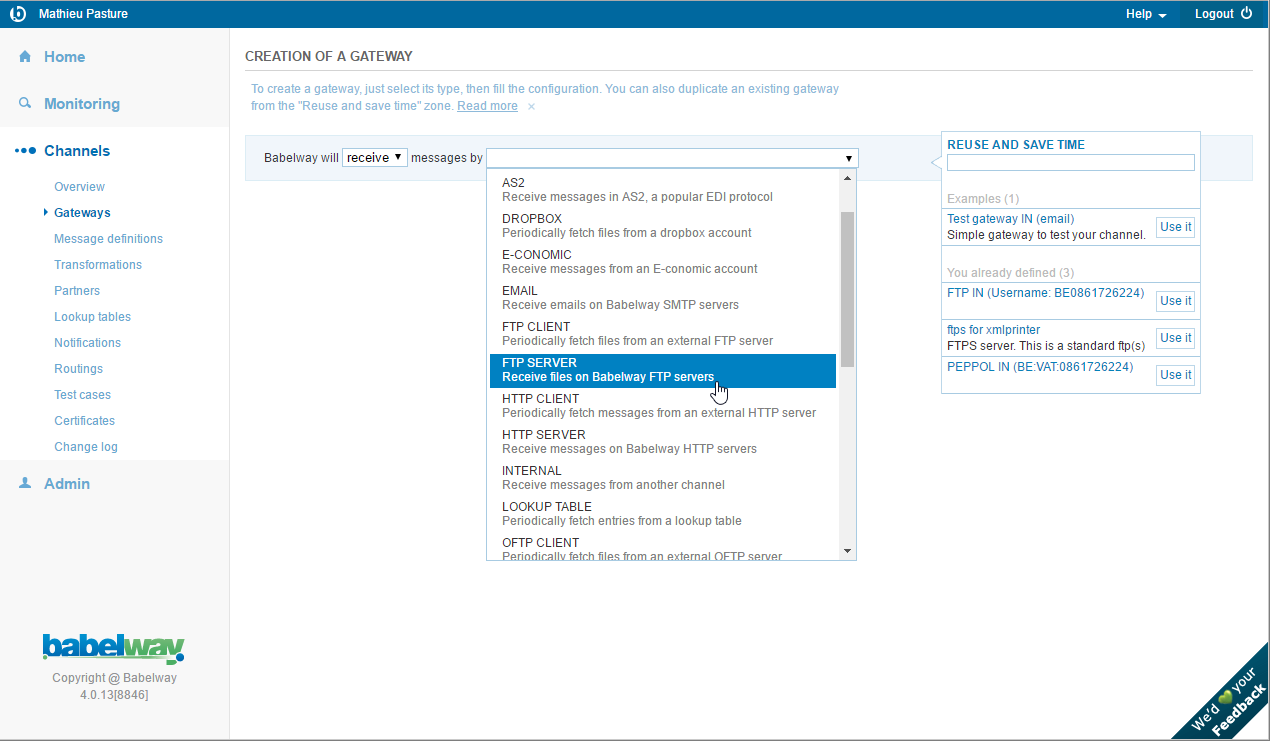

Users select how Babelway will communicate with external systems A and B. The communication protocol used with system A can of course be different from the communication protocol used with system B. Users can choose from a range of communication protocols, including:
- AS2: this a communication standard largely used in retail to secure communication over the Internet.
- Ftp client: to set-up an FTP client accessing an external FTP server
- Ftp server: to configure the FTP server receiving incoming messages or to place outgoing messages
- Email: to set-up a new Email address to receive incoming messages or to send outgoing messages
- Web gateway: to set-up a website access to upload incoming messages or to download outgoing messages
- SOAP gateway: to set-up a SOAP gateway (SOAP client) to send outgoing messages to a SOAP server.
Once the communication technology has been selected, users then fill in the template with the technical parameters that will be used to establish the connection between Babelway and the external system.
If certificates are an element of the communication protocol (eg. AS/2 or FTPs), users will incorporate the external system certificate as a technical parameter. Users will provide the corresponding Babelway certificate to the external system. (See the relevant chapter for details of security and certificate management)
Note: each Babelway user has its own set of gateway addresses or locators. External systems are therefore connected to individual Babelway users, not to Babelway in general.

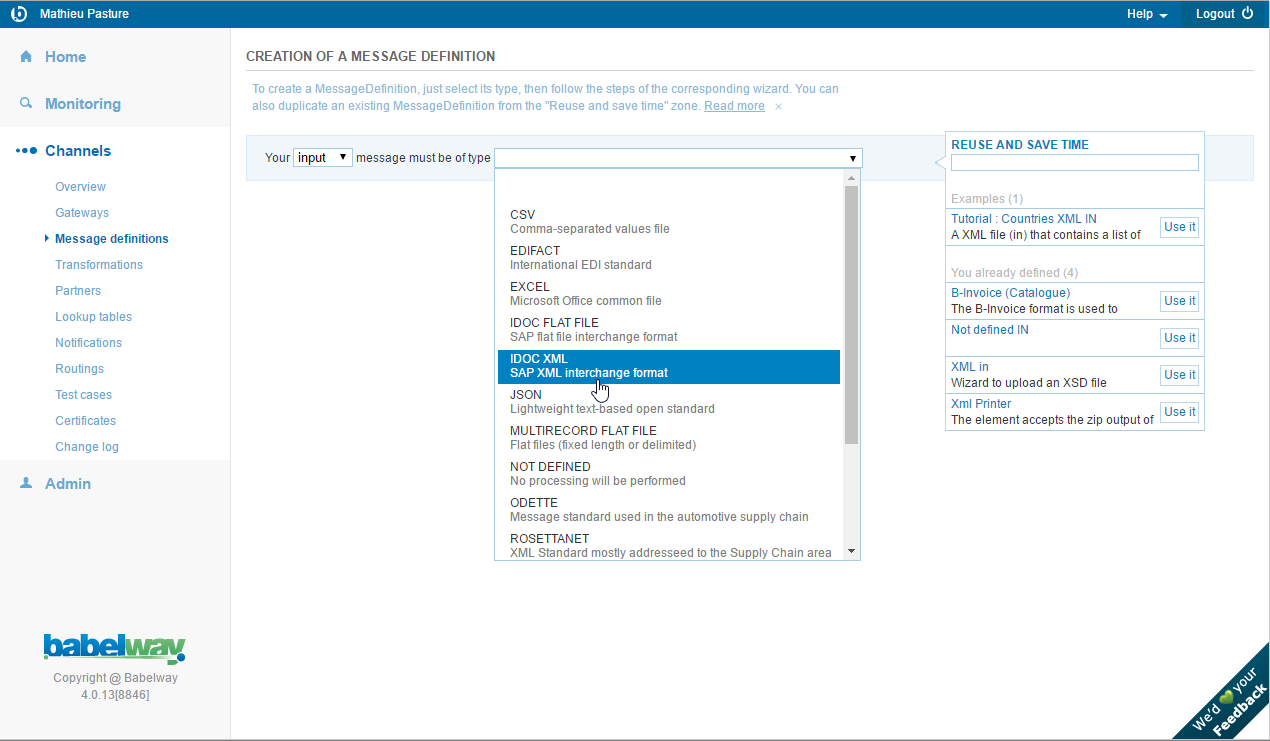

Users select the format amongst the following options
- CSV: to define a character-delimited flat file with constant record definition (data is in columns)
- EDIFACT: to define a new message in EDIFACT format
- X12: to define a new message in X12 format
- MS Excel: to define a new message in MS Excel
- XML, based on XSD or samples
- Flat files, delimited of fixed length
- IDoc xml or flat files
- Many more…

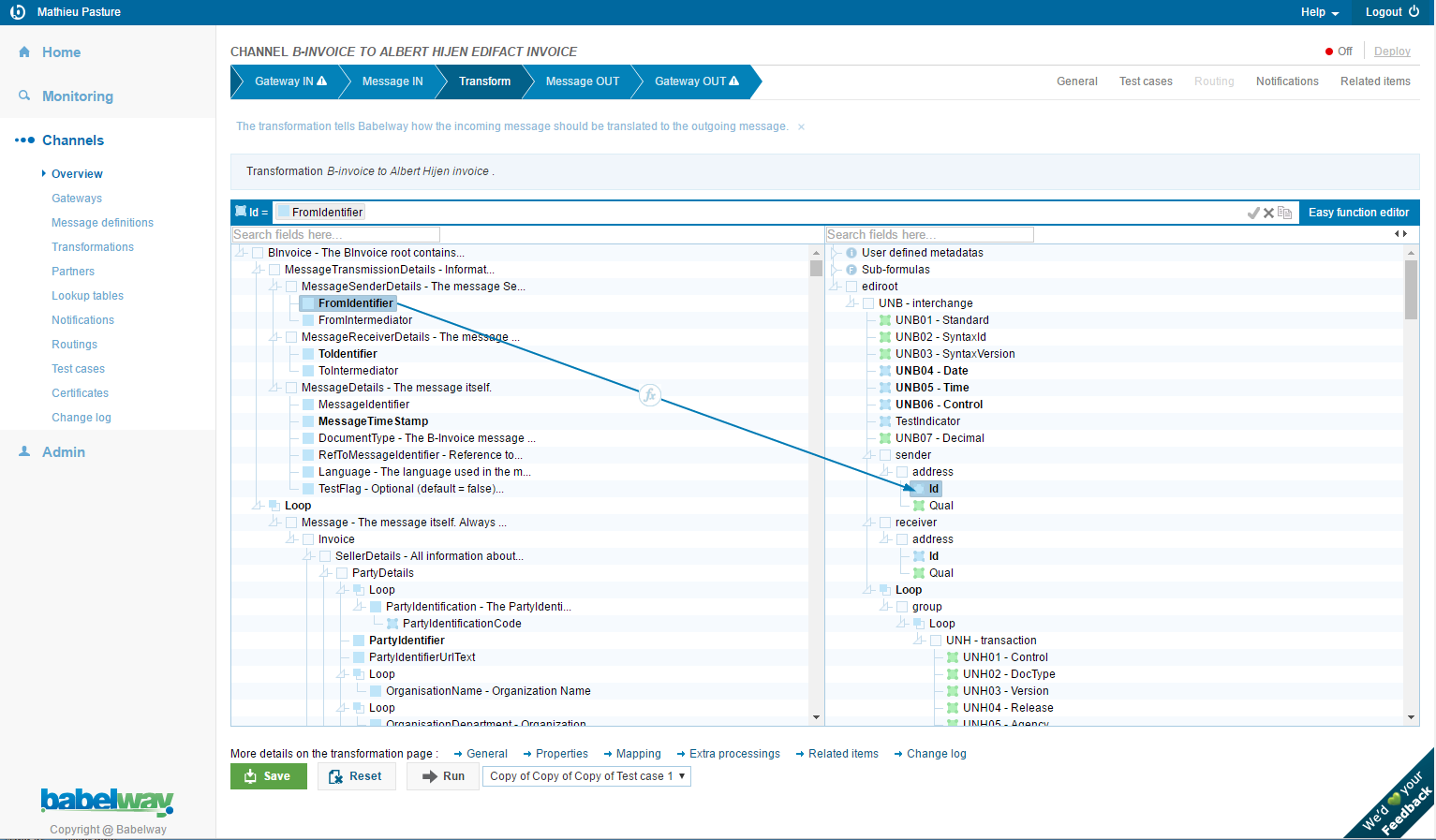

Users can create the transformation rules using the drag&drop interface tool. Users can create correspondences between the message IN and the message OUT by dragging and dropping message fields from left to right.
For more complex transformation operations, users have a portfolio of standard operations they can call upon (concatenation, date formatting, etc.). More advanced users can also define new standard operations using the xpath syntax or xslt functions.
Users can define validation rules to be applied on incoming and/or outgoing messages. For example, validation can make the presence of values in some fields mandatory or make them correspond to a pre-set of values. Validation is particularly useful to prevent that an external system received messages that it cannot process automatically.
Users can configure channels such that outgoing messages are signed using a dedicated advanced certificate and if the outgoing format enables such signature (must be PDF or ZIP format). (See the relevant chapter for details of security and certificate management).
Users can define and load tables of values, called look-up tables, which are used during the transformation process to change an incoming value into a corresponding outgoing value. An illustrative application of look-up tables is to enable a buyer and a supplier to use different product codes to identify similar products (e.g. GTIN codes versus internal codification).
Users can build test cases of their channels. The test cases enable users to check the result of their work on message formats and transformation prior to deploying a channel into the production environment.
Messages originating from a common source but going to various external systems must be routed. Users can define routing rules based on message content items or on message context.
For each individual channel, users can build automatic notifications that will send an email to a specified address upon the arrival of a new message. Notified users can be different if the message is successfully processed or an error is generated. Notification can also be sent to another channel for further processing.
Gateway parameters, message formats, transformation and validation rules are created during the channel building process. Each of these items can be re-used in the building of a subsequent channel. This is organized via what we call the catalogue, the place where all new items are listed.
Users populate a new channel from the items available in their catalogue. This catalogue enriches itself progressively each time new channels are built. When users decide to source an item from the catalogue, they make a choice to use the same instance or to duplicate it. This choice is important when making changes to channels. If channels share the same instance of an item, a change in one channel will impact all other channels using the same item.
Note: Babelway will soon enable users to open up their catalogue to other selected Babelway users, so that channel items created by one user can be re-used by another user. Functionalities will include the secure management of access rights, the possibility of charging for the use of catalogue items and the possibility of tracking and measuring the usage of catalogue items.
Users decide which channels are under construction and which must be activated upon deployment in the production environment of Babelway.

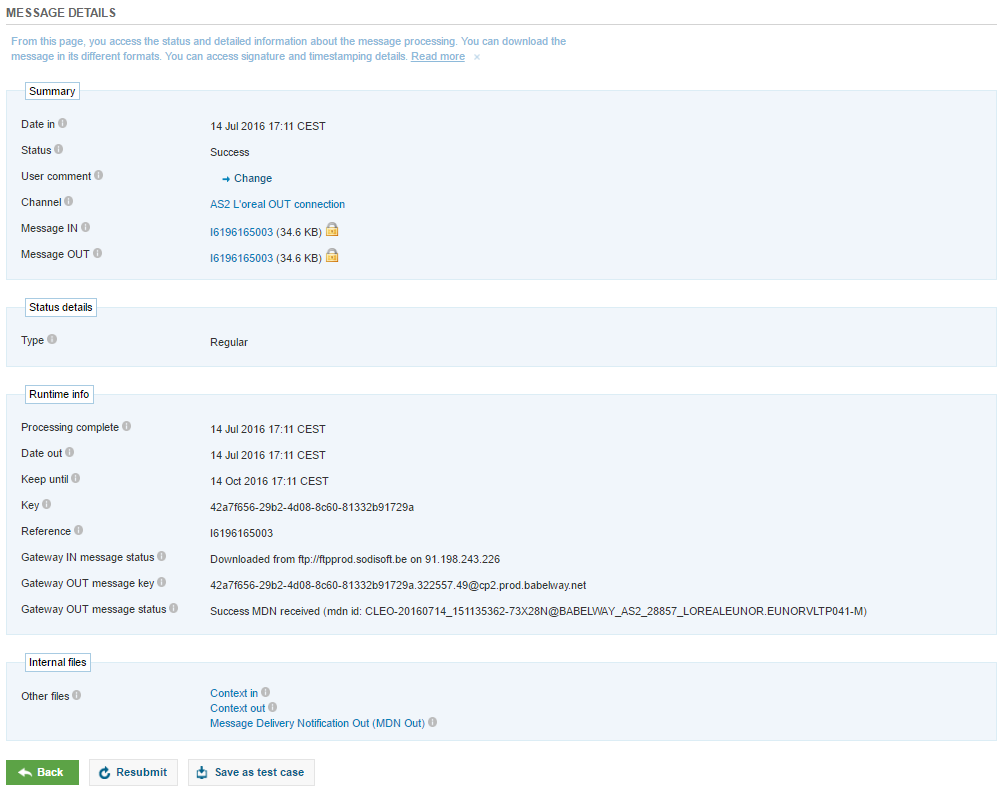

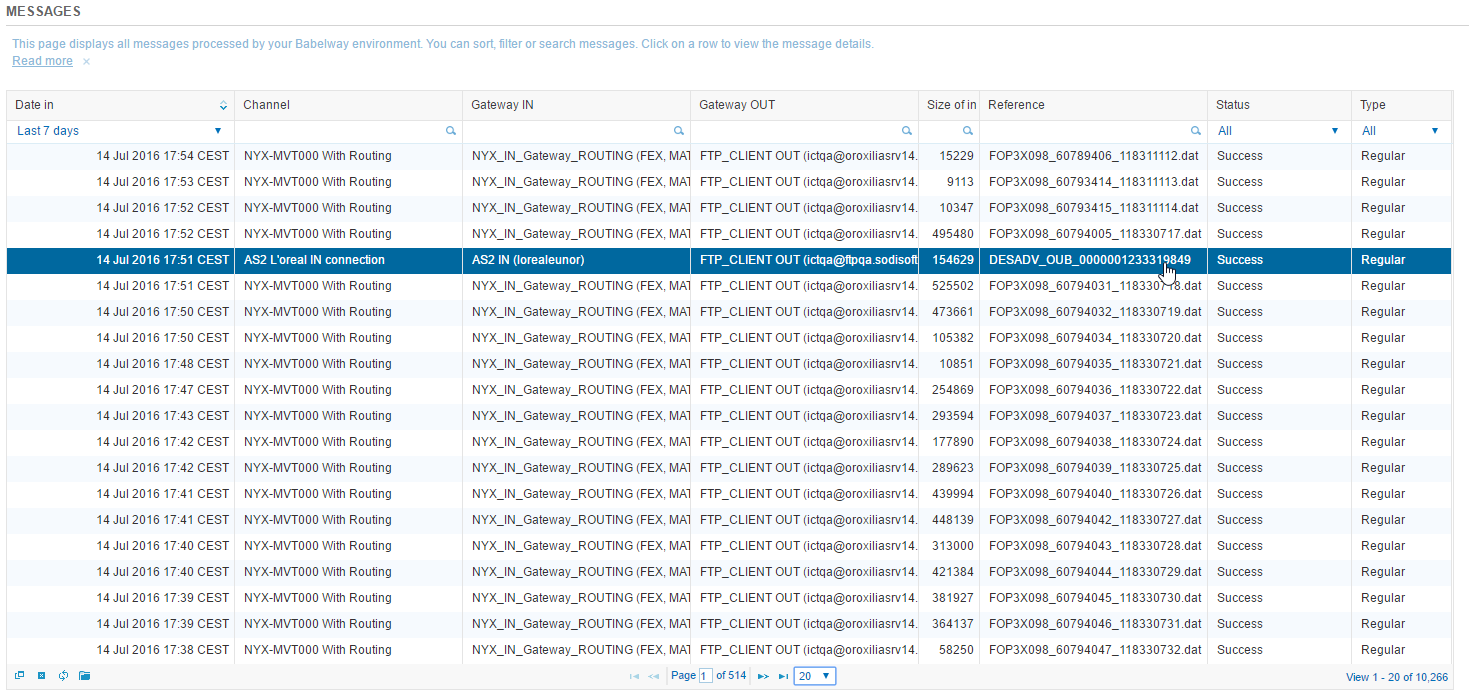

Messages that flow through the user environment can be tracked and traced. Users have access to any message stored, in all its forms (before, during and after transformation) together with contextual information such as time of entry, time of exist, status, as well as relevant security-related information such as certificates and signatures.
Messages that are in error can be accessed directly for manual correction and resubmitted in a channel. In this case a new message is created and the message status of the original message is changed to ‘Error Closed’.
A function to massively resubmit messages is also available to the user.
The messages stays accessible online to user during the whole retention period, as configured in the environment settings or overwritten in the channel configuration.
During this period, the entire information about the message are kept, including the inbound and outbound messages, all intermediate formats as well as the metadata and processing traces.
Multiple events generate alerts. For example, an alert is created when a FTP polling to a remote server cannot be completed due to a connection timeout.
Alerts provide detailed information to users, as well as tools for resolution management.
The account management function includes the following services:
The administrator of an account can provide other users with access to one of its environments. Access rights are as follows:
- Account ADMIN: All right at the Account level.
- Environment FULL_ACCESS: All right at the Environment level.
- Environment HUB_DEFINITION: Generally speaking allow to view and update existing information at the Environment level. This data dependent
- Environment OPERATIONS: Only access the monitoring section of the system.
- Environment PORTAL USER: Only access document belonging to a specific list of partners.
An account can be made up of any number of different environments. It can be useful to build channels in separate environments if
- different people should have access rights; or
- message storage duration should be differentiated; or
- performance expectations are different
- security requirements demand it
- there is a need for a test environment
Each environment has a default processing capacity. The default processing capacity is allocated by Babelway to meet the default service level agreement towards users.
Users can increase their processing capacity in multiple increments of the default processing capacity. By doing this, users can double, triple, quadruple, etc. the processing capacity of their environment and therefore handle very large amount of simultaneous data flows, without being dependent on the general consumption of capacity in other Babelway environments.
As a default option, Babelway stores messages for a period of 3 months. Users can select the ‘long-term archiving’ option which provides storage for any period of time up to 12 years.
Other terms of storage (shorter or longer) may be accommodated individually.
Babelway complies with SOC2 Type 2 norm since 2013 and is yearly audited by Deloitte for Security, Availability, Processing Integrity, Confidentiality, and Privacy. This conformity is equivalent to the past SAS70 norm, which certifies the quality of the Security Procedures.
Babelway has put in place an Information Security Management System (ISMS) compliant with ISO27001 guidelines. Babelway’s policy regarding security can be consulted online (https://www.babelway.com/?s=security+policy) . The system ensures processes are in place to meet the policy’s objectives.
Currently Babelway has not seek the ISO27001 certification.
From May to October 2008, Professor Jos Dumortier, an internationally recognised expert in the field of legal electronic signatures, audited the Babelway solution and checked its compliance with the legal requirements imposed by the EU Directive about electronic invoicing. Professor Jean-Jacques Quisquater, an expert in cryptography, assisted in the project by giving his views on the specific use of cryptographic technologies made by Babelway.
The project resulted in an audit report which concluded that Babelway meets the legal obligations regarding e-invoicing. The signature made available to Babelway customers is indeed an ‘advanced signature’ in the legal sense since it fulfils the 4 conditions, namely:
- It is uniquely linked to the signatory
- It identifies the signatory
- It is created in such a way that the signatories can maintain it under their sole control
- It is linked to the data in such a way that any change is detectable
Note: Babelway offers an ‘advanced signature’ to transfer and store messages. Customers can use Babelway in a way that can guarantee the authenticity of origin and the integrity of the message. However, Babelway does not accept responsibility for the way in which customers assemble specific channels, establish interchange contracts with their partners and connect their own systems to their Babelway environment. Babelway stresses to customers that it their responsibility to check their own usage of Babelway and to assess whether it is compatible with their local regulatory environments.
Babelway infrastructure is hosted externally. Babelway has agreements with 2 hosting providers:
- Combell, a recognized Belgian hosting company. Combell uses the physical premises of LCL, located in Diegem, Belgium. Premises have been audited by an independent consultant mandated by Babelway.
- Amazon, a recognized International company. Babelway subscribes to the Amazon Web Service (AWS) offering whereby Babelway has access to virtual servers “on-demand”. Servers are physically located in Ireland.
To maximize availability and reliability, not only has Babelway contracted on strict terms with reliable partners but it has also installed redundancy between its 2 data centers. In the event of downtime of one of the 2 data centers, Babelway can switch all data traffic to the other data center.
Limitations of the redundancy are:
- Web interfaces (human access to user environments) has an active node in Combell only, with a real-time passive backup on Amazon. In case of unavailability of the Combell infrastructure, messaging services can continue but human tracking or maintenance is not available, until the passive node is activated.
- Gateways to external systems based on physical IP addressing would also be interrupted. We recommend that users use URL locators instead of IP addressing wherever possible.
The processing and archiving of messages are achieved by separate component called the ‘messaging engine’. The messaging engine are self-sufficient to process messages, even if temporarily disconnected from the web interface.
This approach technically allows customers of Babelway to host their messaging themselves while still using the unique Software-as-a-Service. This could be important to some customers if security considerations require them to control the messaging servers themselves or to have servers physically located in some specific geographic territory, for example.
Babelway customers hosted on the shared infrastructure have the possibility to choose the geographic location of their messaging engine between an EU location or a US location.
Our hosting providers have demonstrated to Babelway that they managed infrastructure according to our (SOC2 and ISO 27001) expectations levels.
Amazon AWS security processes are described at http://aws.amazon.com. Babelway subscribes to EC2 and S3 services. Amazon AWS has the security certification SAS70 type II. Amazon cannot access Babelway data in any way. All data communication, storage and back-ups are encrypted. Encryption is made using a 2048bits private key created by Babelway and stored on Babelway server file system, with access restricted to the super user (root), a member of Babelway management.
Combell security processes are described at http://www.combell.com/en/. Combell employees do not have access privileges to Babelway servers.
The components (database, application server, gateways, etc.) of the infrastructure within each data centre have their own fail-over mechanism.
Babelway also provides to its customers private messaging engine, located in their datacenter of choice. Currently, Babelway operates messaging engines in AWS both in Europe and United States as well as in partner location in France in the AZNetwork datacenter.
These components have been integrated into an extensive development program which began in October 2006. Our technical developments are centrally managed from our base in Belgium. We have developed a very precise expertise on highly specific topics such as scalability, database optimization, ergonomy, cryptography, processing performance, XML and EDIFACT standards, etc with recognized specialists in each of these fields and usually for short, highly focused missions.
Software development follows the Scrum framework for software and other platform development. Our sprint horizon are 2 weeks.
To ensure the total data independence between environments, Babelway software strictly controls data access using isolation techniques.
The system is based on RBAC (role-based access control) principles. Each software layer (presentation, application, business and data) performs its own security enforcement.
All accesses to environment and customer data are logged in an audit trail. The audit trail is using a separate business logic to insure independence of the regular business logic. It cannot be modified by Babelway support agent. The audit trail is proactively inspected on a monthly basis for critical operation and odd usage patterns.
Monitoring of systems and applications are performed using different mechanisms:
- An external monitoring tool is used to test the availability and the performance of the application from a customer point of view. This system also includes a 24/7 alerting mechanism to the mobile device of operator in charge. An escalation process is also in place to insure proper handling of issues.
- An internal monitoring tool is used to test the availability and performance of the different components of the system. The Operations Manual provided in annex describes the set of monitored items
- A positive & reactive monitoring able to alert the Operation Manager when a situation requires some attention (for instance, a message entering the system and not delivered in the SLA window)
All tools are collecting information, generating statistics and deliver alert if needed. Issues and bugs encountered are logged and tracked for further reference and follow up.
Babelway uses the following security certificates:
Babelway uses the Belgian electronic identity card (eID) of designated members of the Board of Directors of Babelway as the Babelway qualified certificates of Babelway. The Babelway qualified certificate is used in signing chain timestamps in the message archives.
A pair of “root” keys is generated by Babelway for each user environment on a secure machine, not connected to the network. The public key is included in a self-signed “root” user-environment certificate and stored in the environment keystore. The private key remains in a separate keystore on the secure machine.
The user-environment certificate is sent to the Babelway security environment and stored as any other message, guaranteeing its integrity and timestamping (see archiving section below)
Babelway creates 3 pairs of keys for each environment and, using the user-environment root certificate, associates them with 3 environment certificates:
- A transfer pair, generated on the secure machine and stored in the keystore of the user environment. This certificate can be used by customers to sign outgoing emails with a structured file attached (EDI method) or to sign PDF or ZIP files that contain a message and are sent via an unsecured network (e-signature method)
- A storage pair, generated on the secure machine and stored on the user environment. The public key is included in a storage certificate signed by the user-environment root certificate. This certificate is used systematically to sign all stored messages of the user environment.
- An encrypting pair, generated on the secure machine and stored on the user environment. The public key is included in an encryption certificate signed by the user-environment root certificate. This certificate is used systematically to encrypt all stored messages of the user environment.
Secure transfer certificate, associated with Babelway servers and certified by Thawte (Verisign). This certificate guarantees authenticity and confidentiality for exchanges using protocols: Web (https), SOAP (https), FTPs and FTPs Servers, AS/2 (https layer), whatever the customer environment performing the document exchange.
Secure transfer certificate, used for exchanges using the sFTP protocol. This certificate is self-generated by Babelway with Babelway as the root authority. The certificate is ‘manually’ accepted by the exchange partner during the set-up of the sFTP connection.
Secure transfer certificate, used for exchanges using the AS/2protocol. This certificate is self-generated by Babelway with Babelway as the root authority. The certificate is ‘manually’ exchanged between partners during the set-up of the AS/2 connection.
In addition to Babelway certificates, users can include/exclude external systems certificate in their own trusted certificate list (keystore).
Each user environment has its own keystore. This keystore keeps all the keys and certificates necessary for the runtime of the environment. It also contains the trusted external systems certificates. Users can add or delete trusted certificates. Users have no access to user environment private keys.
The keystore is based on recognized cryptographic standards. Access is protected with a password system with multiple layers.
Users have multiple options in order to securely send outgoing messages.
- They can use a protocol secured with one (or more) network certificate (SSL, SSH or AS/2).
- They can sign outgoing messages (PDF or ZIP formats) with their user-environment transfer certificate
- They can sign emails with their user-environment transfer certificate.
Each flow of message through a Babelway channel creates multiple files:
- the message as it existed when entering a channel of the user environment;
- the message as it existed when exiting a channel of the user environment;
- possible intermediary (XML) versions of the message between entry and exit.
A flow through a single channel creates a single ‘message record’ where individual files and their signatures are grouped.
The following process is used to guarantee the integrity of the stored files.
All files are signed using the storage certificate of the user environment using the SHA512 and RSA algorithms. The signature is hashed (SHA512) and the result is kept for the chain mechanism described below. Optionally, users can upload an encryption key that is used to encrypt stored files to insure that Babelway doesn’t have access to the content anymore. The file is then encrypted with the encryption certificate of the user environment using the AES256 algorithm. The encrypted file is then stored.
For each stored file, there is the following contextual data:
- an ID (sequence number)
- the date and time of the storage
- the “hash” of the signature created with the storage certificate
- the user environment ID number
- hash of the contextual data of the previously stored message
- the hash of the message is kept as ‘index’ for easy message retrieval
- the full signature is also kept for complete future validation
At regular intervals, in order to split the chain into easier to work chunk, Babelway signs the hash of the contextual data of the last available message with its qualified certificate. This is time-stamped by a trustworthy timestamp authority. At the same time, Babelway requests a validity proof for the Babelway qualified certificate from the Belgian authority (Citizen CA).
The chain makes it impossible for an individual user or for Babelway to change any stored element without breaking the chain and therefore making it detectable.
Users of Babelway can demonstrate the authenticity of origin and the integrity of messages flowing through their environment as follows:
If users are using the transfer certificate, the public key or its footprint of their “root” environment certificate must be included in the interchange contract that Babelway users sign with their business partners. This explicitly shows the agreement of the parties to trust exchanges between themselves using this specific Babelway user environment certificate. It should be noted that:
- The fact that user environments on Babelway are unrelated to each other (no common certification authority) provides additional security in the sense that accepting exchanges with one Babelway environment does not imply accepting exchanges with all Babelway environments. Each B2B relationship must be individually certified between the parties. Users are responsible for informing their business partners of changes in the validity of their certificates.
- The absence of a trusted third party has no influence on the validity of the signature as an advanced signature. The parties have certified the identity of their counterpart through the interchange agreement (bilateral agreement).
- The chain mechanism in the storage system of Babelway guarantees (to users as well as to the tax authorities, for example) that messages have not been tampered with by anyone, including Babelway.
To verify the authenticity and the integrity of a specific file:
- The message record page in the user environment includes the decrypted file, the hash of the signature, the certificate of the storage public key of the user environment, the sequence number of the file, the sequence number of the user environment root certificate, the previous and next authenticated timestamp
- The previous and next authenticated timestamp must verified
- The chain is recreated between the 2 timestamps by re-hashing the contextual data of each stored file. This certifies the stored hash of the storage signature.
- The conformity of the message is verified. In particular,
- The signature hash should be recalculated and checked against the stored hash for the message.
- Check the signature of the storage key by the root certificate
- Check the presence of the root certificate in the storage system and its conformity following the same process
- Check the signature
This verification process guarantees that
- The message has been processed by a specified user environment on Babelway and on the date which is stated
- The message has not been modified since its signature
The human monitoring function provides helpdesk support to users on working days.
Any request or issue reported is acknowledged within 15 minutes. It is given a support alert number and a reply is provided within 1 hour at the latest.
The support agents are distributed among 3 different levels, each one having his own expertise field. Below is a non-exhaustive list of examples of issues, distributed according to the level structure:
Level 1. This is where all support tickets begin. This level is able to provide:
- Assistance and help on system
- Messages follow-up (message not sent/received, message is in error)
- Basic troubleshooting like issue in mappings
Level 2. If an issue cannot be resolved in level 1, it will be escalated to level 2. This level is able to solve issue like:
- Protocol incompatibility
- Problem linked to bug in the application code
Level 3. Issues that cannot be resolved at level 2 will be escalated to level 3.
- Access to server logs and operating system
- Database queries
Babelway developed the Babel Academy. These are generic and specific training sessions provided by Babelway senior staff in Babelway premises or on-line.
Customers can call upon Babelway professional services to support them with on-boarding partners, designing new channels, developing internal or external communication plans and generally execute projects in relation to the exploitation of the Babelway platform.
For each project, Babelway and the customer agree on a scope and a price based on man-day prices referenced in the pricelist. Account management and generally interventions requiring human involvement are defined with each customer within the scope of Babelway professional services.
Network of partners
Babelway develops and entertains a network of partners with specific capabilities in geographic regions, industrial sectors or technical domains. These partners can also be called upon in some customer projects.
